Stainless Steel Exd type Explosion-Proof Anti-Corrosion Square Junction Box

Product Categories
Xi An Kaidun Intelligent Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Stainless Steel Exd type Explosion-Proof Anti-Corrosion Square Junction Box

Brand Name : KAIDUN

Model Number : KD-EX07SS

Certification : ATEX

Place of Origin : China

MOQ : 1

Packaging Details : Wooden box packaging / cardboard box packaging

Delivery Time : 5-8 week

Payment Terms : T/T

Supply Ability : 5000 units/year

Contact Now

Stainless Steel Exd type Explosion-Proof Anti-Corrosion Square Junction Box


Key Features

  • Weight:≤27.8kg
  • Material:Stainless Steel
  • Cable Outlet:8 cable outlets
  • Operating Conditions:-40°C to +60°C (-40°F to 140°F), 95%RH or less (non-condensing)
  • Hazardous Area:Zone 1, Zone 2, Zone 21, and Zone 22
  • Ingress Protection:IP66
  • Ex mark:Ex II 2G Ex db op is IIC T6 Gb/ II 2D Ex tb op is IIIC T80°C Db IP66
  • Certification:ATEx approval
  • Model KD-EX07SM And KD-EX07SL are optional

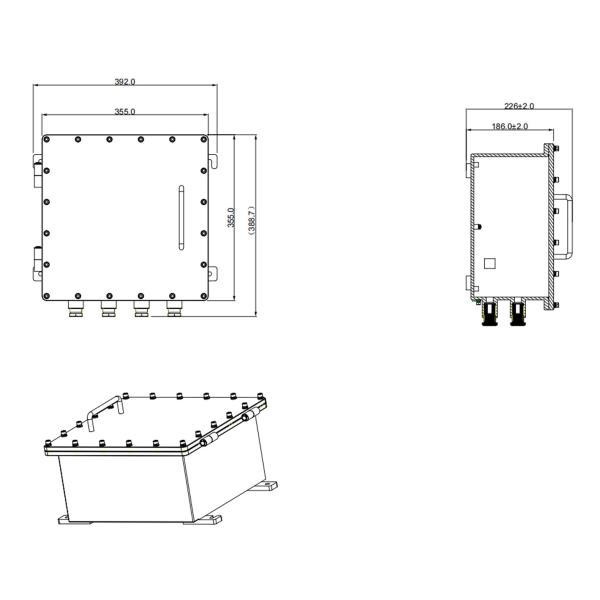

Dimension

Stainless Steel Exd type Explosion-Proof Anti-Corrosion Square Junction Box


Service

You can have the product replaced within 7 days due to quality problem and the quality guarantee period for this product is one year.
You can also get the favorable promotions.
In the following conditions the product is not considered within the quality guaranteescope:
- Client cannot bring forth the quality guarantee card and invoice or receipt of purchasing;
- Improper service conditions,such as unmatched power,ambient temperature,humidity or lightingcaused malfunction;
- Malfunction caused by accident,negligence,disaster incorrect operation or network attack;
- Malfunction or damage in installation,repair,modification or dismantle caused by unauthorizedpersonnel;
- Out of guarantee period.
If you have any dissent on technical service provided by distributor,please lodge acomplaint to the customer's service center of Kaidun.
The quality guarantee card will be validated only after it's stamped by the after-service provider.
